Products
Composite Products
We manufacture some type of hihgly-functional products by 1650T hot isostatic extrusion press.
We developed some trendy material products that were hard-to-process such as composite material, powder-alloy, complex shape products, with high reduction by isostatic extrusion and metal flow rate uniformity.
Copper-Core Clad Wire
We developed glass sealing wire which has high electric conductivity for the demand of miniaturization, higher performance of industrial vacuum equipment, vaccum device of electronics.
This products is very original manufactured by hot isostatics extrusion press, appling oxygen-free copper for core material of wire and alloy which has similar coefficient of thermal expansion to glass for outer material of wire.
Lineup of Copper-Core Clad Wire

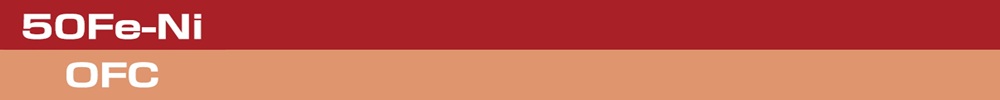

50Fe-Ni/OFC Main Application
- Various hermetic seal components
- Usage examples：motor protectors and hermetic feedthrough terminals(for air conditioners, refrigerators, automobiles, and data-center equipment)
Production Range
- Unit
- Outside Diameter
- Bobbin
- φ 0.5～1.5mm
- Coil
- φ 1.5～5mm
- Bar
- Available upon request.
※Production tolerances and any manufacturing ranges not listed above can be discussed separately.

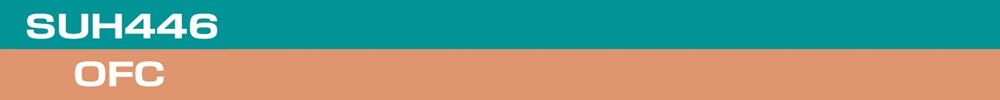

SUH446/OFC Main Application
- Various hermetic seal components
- Usage examples：Hermetic power feedthrough terminals(for air conditioners, refrigerators, automobiles, and data-center equipment)
Production Range
- Unit
- Outside Diameter
- Bobbin
- φ 0.5～1.5mm
- Coil
- φ 1.5～5mm
- Bar
- φ 5～20mm
※Production tolerances and any manufacturing ranges not listed above can be discussed separately.
